Instrument Cluster Cost [Replacement & Repair]
There is a lot of information you need to keep in mind when driving your car, like speed, fuel levels, RPMs, etc. Instrument clusters are a way to show drivers all this info in a quick and concise manner. Like any car component, instrument clusters need to be periodically replaced.
On average, it will cost about $800 to replace an instrument cluster. Parts typically cost around $600 while labor will cost between $200 to $300.You may also need to replace instrument cluster sensors which can cost between $100 to $400 each. These prices are averages and will depend on your car’s make/model, and your mechanic’s location.
There are a lot of factors to consider when it comes to replacing your instrument cluster. So we put together this comprehensive guide on instrument cluster replacement costs.
We will cover replacement costs for the main console and costs for various sensors around the car.
What is an Instrument Cluster?

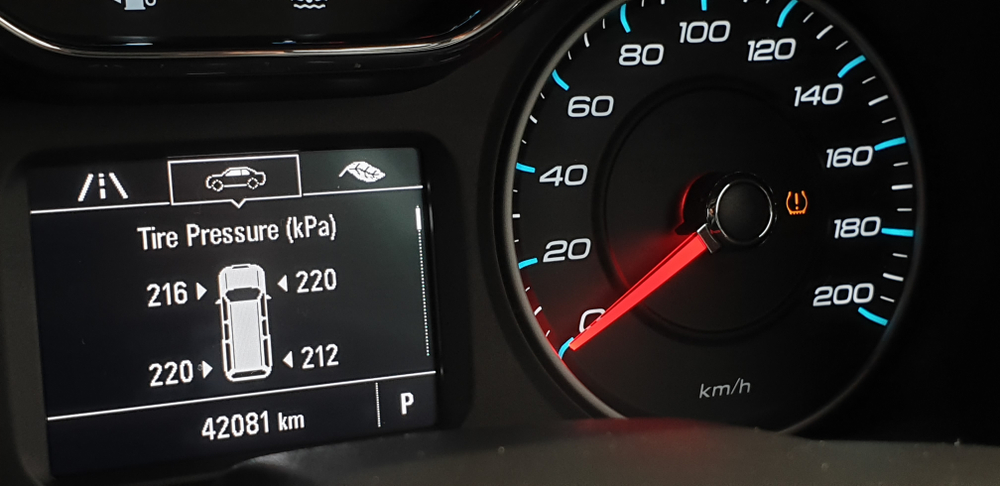

Every modern car has an instrument cluster. When you get in your car, it’s the first thing staring you in the face. The instrument cluster, also called the dash or dashboard, is the main board behind your wheel that contains several gauges and lights.
Among other gauges, the instrument cluster contains the
- Fuel gauge
- Turn indicators
Most older instrument boards use analog dials to represent measurements, but many modern cars use digital gauges. Instrument board designs have changed over time.
Older clusters attached directly to the components they measured. Modern clusters connect to the powertrain control module, which feeds all the necessary information to the gauges.
How Much Does it Cost to Replace an Instrument Cluster?
Overall, you can expect to spend about $850 to replace an instrument cluster. Parts typically cost around $600 while labor may cost around $200-$300.
Below is a table showing the average costs to replace the instrument panel for various popular models of car. These costs are averages and will differ depending on the age of your car and your mechanic’s location.
|BMW 3 Series||$1,200|
Instrument cluster repair can differ widely depending on the model of car because different cars use different types of sensors.
It may take more labor to wire certain sensors than others. Additionally, cars that use analog dials tend to cost less to replace than panels that have digital indicators.
Most instrument panels connect to various sensors that feed data to the dials and indicators. Sometimes, you may have to replace these individual sensors.
One of the most common sensors to replace is the speed sensor, which controls the odometer. A broken speed sensor may cause inconsistent dial readings.
|BMW 3 Series||$300|
Generally speaking, the speed sensor is located on the passenger side of the transmission, near the side output flange.
The sensor is bolted to the array and has a two-wire connector and an o-ring seal. When you replace the sensor, you may also have to replace these related parts.
The fuel sensor is another important part of the instrument cluster that works to relay current fuel levels. Most modern cars use a sensor with a floating ball cock and actuator arm to detect fuel levels.
The typical cost to replace a fuel sensor is around $250 on average. The typical range is between $100 to $400. Below is a table showing the average costs of fuel sensors for various popular car models.
|BMW 3 Series||$400|
Fuel sensor costs can vary depending on the type of sensor. Many older cars use mechanical resistance-based sensors and these are the least expensive to replace. Other cars use electrical sensors that are more expensive to replace.
Sometimes, all you may need to do is replace the indicator bulb. Fortunately, instrument cluster bulbs are generally cheap to replace. A typical indicator bulb will cost about $10 to $30 on average to replace.
Most cars still use traditional incandescent indicator bulbs, while newer cars may use more advanced LED bulbs. LED bulbs will usually be more expensive to replace as they have more advanced technology.
Factors that Affect Instrument Cluster Replacement Costs
Type of cluster
Most modern cars have a digital cluster with digital dials and gauges. Older cars have analog gauges and dials. Generally speaking, digital clusters will cost more to repair because of the circuitry.
Types of sensors
The types of sensors you have will also affect repair costs. Cars that use primarily mechanical or resistance-based sensors will be cheaper to replace as they do not have complex electrical components.
Your car’s make and model will also affect costs. Some cars have small processors in the instrument cluster, so they will be more expensive to repair. Other models use analog components, which are cheaper to repair.
Age of your car
All other things being equal, the older your car is, the less expensive it will be to replace the instrument panel. Older cars typically don’t have the advanced computing systems that modern cars have.
In addition to the panel itself, you may have to replace various sensors that feed the indicators data. For example, you may also have to replace sensors such as the fuel sensor or speed sensor.
What Can Cause an Instrument Cluster to Malfunction?
The only problem that will warrant a full instrument cluster replacement is a defective instrument cluster.
You may be experiencing problems with your gauges and lights for many other reasons, and most of these are typically easier fixes.
Before you spend the money on a new instrument cluster, have a mechanic perform an in-depth inspection to see if something else is causing the problem. Some common causes of a malfunctioning instrument cluster include:
- A blown fuse
- Computer faults
- Bad sensors
- Loose connections
- An overloaded circuit
- A stripped gear
- A ground problem
- Problems with your vehicle’s wiring
If your instrument cluster has not completely failed, the information below may help you correctly diagnose the problem before you visit a mechanic.
A Blown Fuse
If you have a blown fuse, all of your gauges and lights may stop working at once. Thankfully, this is a relatively easier (and typically much cheaper) fix than a full cluster replacement.
A mechanic will be able to open your fuse box to see if any fuses are blown.
If this is the source of your problem, the mechanic will replace it for you. If your instrument cluster starts working again once this is done, the problem has been solved.
There are many things that can cause your engine’s computer to stop working properly. The problem may be caused by a hardware issue, or it could be due to corrupted software.
Before they replace your instrument cluster, a good mechanic will check your computer for any issues.
Sometimes, you’ll notice that only one or two gauges or lights on your dashboard aren’t working properly. If this is the case, the problem is usually with one of your vehicle’s sensors.
In most cases, a bad sensor will cause your speedometer to stop functioning correctly. In addition, you may experience problems while using cruise control, or your check engine light might come on.
This is another problem that’s much easier to fix than a defective instrument cluster. The mechanic will replace whatever sensor is malfunctioning and send you on your way.
As you drive, the vibrations under your vehicle’s hood may cause a connector to loosen or unplug. This is another common cause of a bad instrument cluster, and thankfully, it’s one of the easiest and cheapest problems to fix.
Your mechanic will first check the problem by doing a circuit trace. Once they’ve discovered that a connector has come loose, they’ll disconnect your battery, plug it back in properly, and reconnect your battery.
An Overloaded Circuit
In most modern vehicles, the instrument cluster receives its power through a voltage regulator. If this circuit becomes overloaded, you may notice inaccurate or erratic readings on your dashboard’s gauges.
This is a fairly common cause of a bad instrument cluster. It could be caused by something as simple as switching out your battery or having your car jump-started! If this is the problem, the voltage regulator or the circuit will have to be repaired.
A Stripped Gear
Some older vehicles use a cable instead of a sensor to give information to the odometer or speedometer. If you have a vehicle like this and notice an inaccurate odometer or speedometer, a stripped gear may be the issue.
Unfortunately, this is usually a more complicated repair than most others listed here. The instrument cluster will have to be removed in order for the mechanic to access the gears and find the source of the problem.
A Ground Problem
If there is a grounding issue with your car, it may affect your instrument cluster. Typically, this will cause all your lights, gauges, and other indicators to fail. This is an electrical issue that requires a mechanic’s expertise to repair.
A Problem with Your Vehicle’s Wiring
If your vehicle’s wiring is the culprit, your entire instrument cluster will likely stop working. In order to fix this, a mechanic will need to complete an in-depth circuit trace to find the wiring that’s causing the issue.
A Defective Instrument Cluster
If the problem does not turn out to be anything listed above, the instrument cluster itself is likely the source of the problem. In this case, only, the entire instrument panel will need to be replaced
Signs of a Bad Instrument Cluster
Here are the most common signs of a broken instrument cluster.
On dashes with analog gauges, a clear sign of failure is if the needles stutter or get stuck.
If you notice that your gauge needles won’t move or move and then won’t return to the starting system, there could be something wrong with your electrical connections.
Gauges Are Wrong
Another sign of a broken instrument panel is if the gauges do not properly show the right levels.
For example, if you press the acceleration but the gauges do not correspondingly go up, then there may be a problem with the PCM feeding the unit information.
Modern instrument panels typically have backlights that automatically turn on when it’s dark out.
If your lights are not working, or you notice that indicator lights are burnt-out or dim, then it could be a problem with your board’s electrical wiring or supply.
Defective or Sporadic Indicators
The instrument dashboard also contains your turn signals, panic lights, and other indicators.
A common sign of instrument cluster damage is random flashing lights. In that case, then there is probably a wiring problem.
Frequently Asked Questions
How much does it cost to replace an instrument cluster?
It will take about $800 on average to replace an instrument cluster. Parts typically cost about $600 while labor will cost between $200 to $300.
The cost depends on the make and model of your car as well as your mechanic’s location.
How often should I replace my instrument cluster?
Generally speaking, an instrument cluster is meant to last the entire lifespan of your car, so there is no standard timespan to replace it, unlike many other car parts.
However, you may start to notice signs of wear and tear after about 10-15 years. Your mechanic should check your instrument panel when you take your car in for a checkup.
Typically, a broken instrument cluster will not affect your ability to drive and your car should still start. However, your indicators may be off so you might have trouble keeping the right speed or you may not know what your RPMs or fuel levels are, depending on which components are broken.
Can You Drive with a Bad Instrument Cluster?
Driving with a bad instrument cluster is not recommended. Without all of your lights and gauges operating as they should, you will not be able to tell how your vehicle is performing on the road.
While all of these components are important, the speedometer and fuel gauge are the most critical. You need to know how fast you’re traveling at all times, and you need to know how much gas you have so you don’t run out.
Your car will still run the same as usual, but you need a sufficient amount of information on its operation in order to drive safely.
If any part of your instrument cluster isn’t functioning properly, have it inspected and repaired as soon as possible.
Can You Replace Your Instrument Cluster Yourself?
The process of replacing your instrument cluster will be specific to your vehicle. In most cases, you will need to remove the dashboard entirely. In certain vehicles, the mechanic will have to remove the steering column as well.
While it’s not hard for a mechanic to complete this repair, it is still very complicated for the average person.
In addition, most instrument cluster replacements will have to be certified in accordance with the law. With all of these factors put together, it’s typically best to leave the job to the experts.
The cost of a new instrument cluster alone is pretty significant, and having it installed professionally will not significantly impact the total cost.
Unless you consider yourself to be an expert in car repair, always have a professional do this work for you.
How long does it take to replace an instrument cluster?
It typically takes about one to two hours to replace an instrument cluster. It may take longer depending on the type of cluster that you have.
For example, with a digital cluster, the mechanic may have to do some reprogramming to calibrate the sensors.
The instrument cluster is one of the most important parts of your car’s indicating system and gives you information and feedback while you are driving. With a broken instrument panel, you may get incorrect readings from your dials and gauges.
This can be dangerous if you are trying to determine your current speed. So if your indicators are broken, then it’s in your best interest to get them fixed as quickly as possible.
You may also have to replace indicator sensors, so it helps to get a full diagnosis for your car. As always, make sure you consult several mechanics to get the best price possible.
